Output microphone to loudspeaker and record audio

In addition to the Output microphone to loudspeaker scenario, this audio stream is now to be recorded directly from the Jabra headset microphone via the mixer to the Jabra headset earpiece.

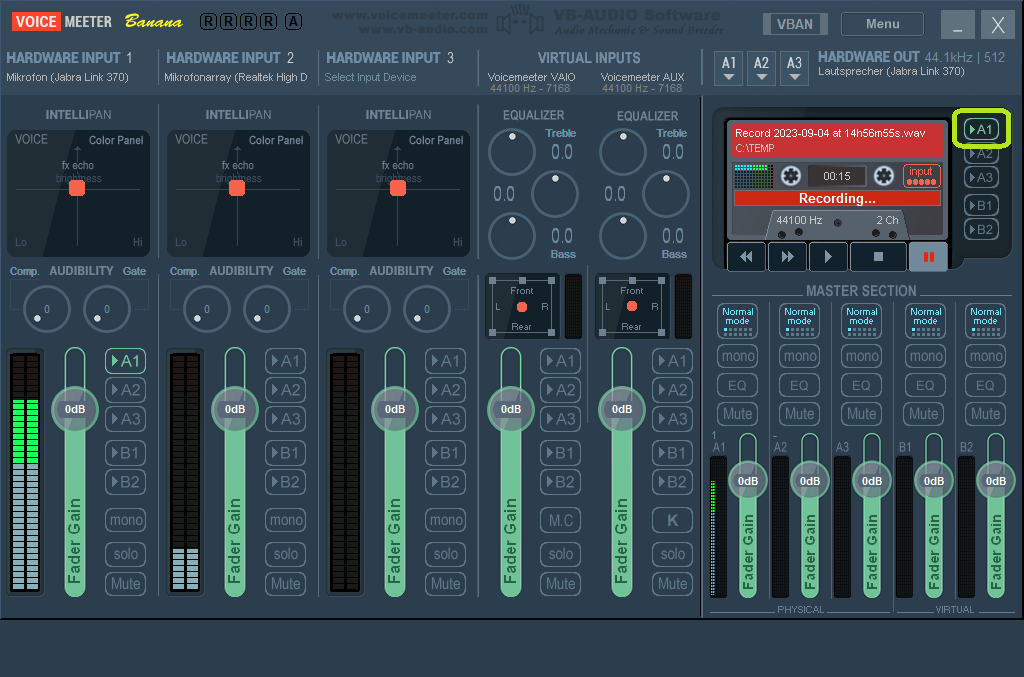

To do this, the bus to be recorded (here A1) must be activated to the right of the compact cassette:

Example screenshot: VoiceMeeter Banana Record .wav

Set target directory

Clicking the secondary mouse button above the compact cassette opens the setting option for the target directory. In this example, the audio stream is recorded in the C:\TEMP directory as a WAVE file.

Recording takes place either at the beginning or at the end of the bus.

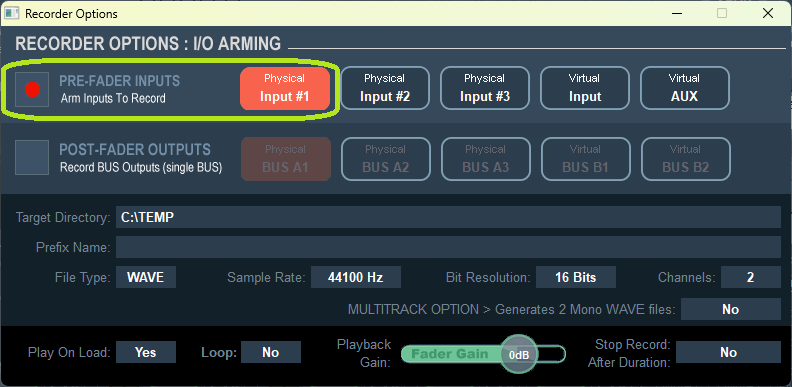

PRE-FADER INPUTS stands for the recording at the beginning of the bus:

Example screenshot: VoiceMeeter Banana Recorder Options – Pre-fader inputs

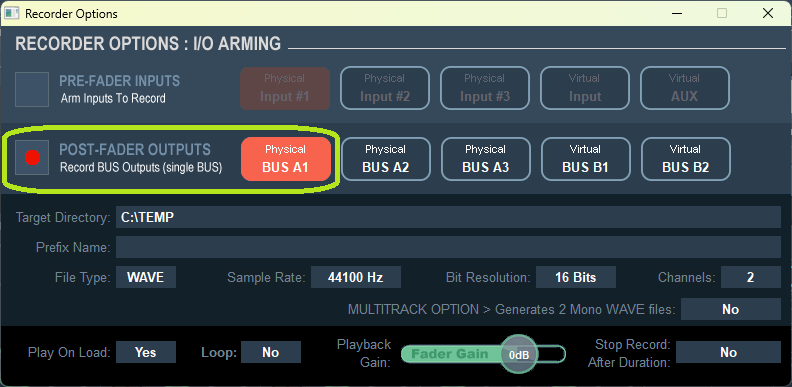

POST-FADER OUTPUTS stands for the recording at the end of the bus, to which the gain settings for the input (fader gain) have already been applied:

Example screenshot: VoiceMeeter Banana Recorder Options - PostFader Outputs - Fader Gain

The record, stop and possibly pause buttons are required for recording. If the recording is not stopped, but only paused, the recording is continued in the same WAVE file.

Legal aspects

Please note that conversations may not be recorded without the consent of the other party.
