ProCall NEX

From the "Professional" tariff of ProCall NEX, contact data from a MetaDirectory can be integrated.

The MetaDirectory is installed on-premises as usual to enable access to local data sources such as ODBC.
Detailed instructions can be found here: MetaDirectory Enterprise

Quick start for MetaDirectory with ProCall NEX

Install MetaDirectory

Install MetaDirectory version 6.2 or higher.

Technically, it is possible to continue using an existing MetaDirectory installation.

Enter access data

During installation, enter the access data for the server account of the ProCall NEX installation.

You do not need an additional licence.

Assign password

It is essential that you assign a secure password for the MetaDirectory Administrator during installation.

Select user administration

In the MetaDirectory administration, select "User administration with Procall NEX" as the user database.

For the access data, you need the password that was created for the administration during the commissioning of ProCall NEX.

Make sure you save this password.
Example screenshot MetaDirectory Administration - Configuration - User administration - User database - Replication with ProCall NEX - Access data


Connect

Click on the "Apply" button.

If the data is correct, "Connected" is displayed.

In the user administration, you now have the same users as in the entire ProCall NEX installation and can configure them for MetaDirectory.

Configure the MetaDirectory according to your requirements.
Instructions can be found here: Kontaktdaten mit MetaDirectory integrieren

Set up MetaDirectory connection in ProCall NEX Server Administration

Activate "Use estos MetaDirectory" in the ProCall NEX Server administration in the MetaDirectory menu item.

Enter the connection and login data as follows:

  • MetaDirectory Server
    via the UCSID
    UCSID stands for the UCConnect ID of your ProCall NEX instance
    Example UCSID.meta.ucconnect.de
  • User ID
    User and password for logging in to MetaDirectory Administration, which you specified during the MetaDirectory installation.

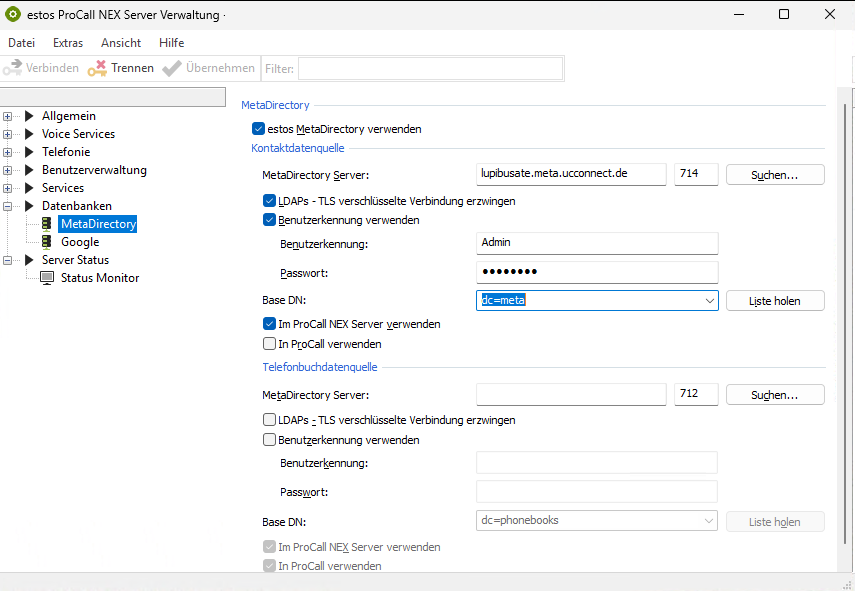

Example screenshot - ProCall NEX Server Administration - Databases - MetaDirectory - Specify contact data source

Please note that the tick "Use in ProCall" must not be set when selecting Entra ID as user administration for ProCall NEX.

Public LDAPs Port

Please note that only the public LDAPs port 714 (with LDAPs - TLS) can be used and the connection must be exclusively encrypted.

Apply settings

Confirm with "Apply".

Now the clients can search in the MetaDirectory (via the UCServer).
