State of knowledge

October 2023

This guide describes how to configure softphone features (SIP) for ProCall Enterprise in conjunction with an OpenScape Business from Unify.

ProCall Enterprisefrom V 7.0
PBX

Atos Unify OpenScape Business

V2 R4.0.1

Notes on the estos test environment

The softphone functions (SIP) of ProCall were tested in the estos test environment with the telephone system specified above. The tests were performed with a maximum of two lines per SIP end device. The following information was used during the setup of the telephone system for the login/registration of the individual SIP lines to the UCServer.


Note on codecs and UDP connections

For the connection of SIP lines to the UCServer, the telephone system must support the G.711 a-law codec for the SIP protocol and should have this set as the preferred codec for all end devices.

Only UDP connections are supported.

As of ProCall Enterprise 7.5: Support of Codec Opus and G.722: HD Voice/HD Telephony with ProCall Enterprise SIP softphone functionality

Note on the use of the G.722 codec on the OpenScape Business

The G.722 codec was set up by changing the codec priority on the OpenStage phone. There was no configuration on the OpenScape Business PBX.

State of knowledge 13/9/2022:

We cannot provide instructions for setting up the OpenScape Business PBX. The G.722 codec is currently not supported via the OpenScape Business PBX over the exchange line, only between the OpenStage phones and from ProCall 7.5 Enterprise clients.

Note on the use of call forwarding in the UCServer

If the Call forwarding feature is used in the UCServer, the SIP lines must allow second calls in order to use the Call forwarding on busy feature.

Configuration of the telephone system OpenScape Business

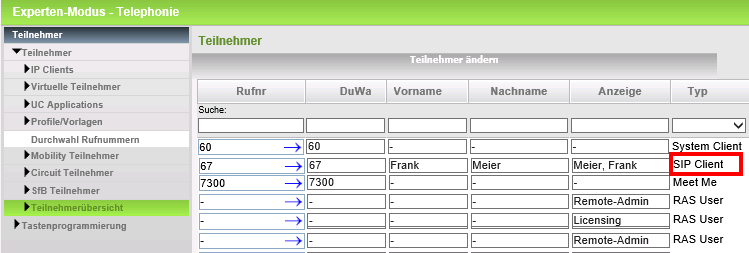

The lines to be used for ProCall must be set up as participants with type SIP Client under menu item Expert mode – Telephony.

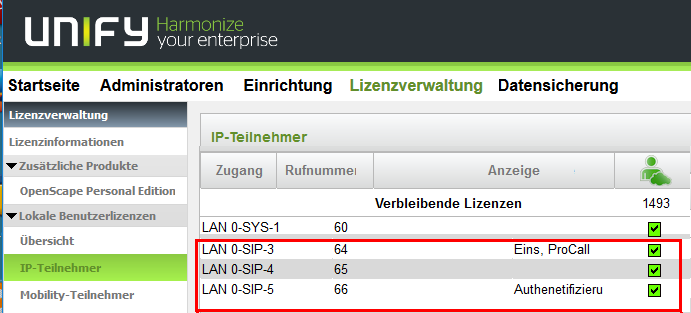

Each of the SIP lines/subscribers used for ProCall requires the activation of a license for IP subscribers, which can be activated via the license management.

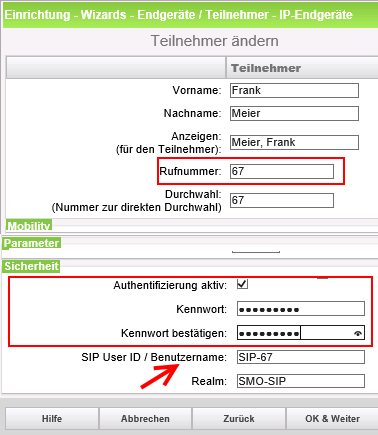

To set up the SIP line in the UCServer, you need the following information/settings under End device/participant setup – IP end devices:

Participant's phone number Menu: Setup – Wizards – End devices/Participants – IP Terminals
SIP User ID/Username
It is recommended to enter the phone number.
Menu: Security
Optionally, authentication can be activated and a password can be assigned.

UCServer configuration

The settings are made in the UCServer administration under Telephony – Lines:

  1. Add telephone system
    Select Unify OpenScape Business.
  2. Enter the connection to the PBX under Softphone registrations as "SIP Softphone“.
    All SIP lines must be added in this connection setting.
  3. For the connection to the Unify OpenScape Business, the following must be specified:

    If SIP User ID equals phone number
    as Usernamethe "Phone number"
    as Passwordthe "Password"
    Optional specification
    If SIP User ID is not equal to the phone number
    as Usernamethe "Phone number"
    as Passwordthe "Password"
    as Auth. Usernamethe "SIP User ID"

From ProCall 6.1, please note the following settings

On the SIP connection line group it is possible to define what the UCServer signals to the PBX when:

  • The client is not logged in or call protection is enabled
  • The call is rejected by the client or no devices are available

The required settings depend on the telephone system and its configuration.

Example: The telephone system should redirect incoming calls to the mailbox if the ProCall client is not logged in.

Problem: The PBX does not evaluate the busy here (486) sent by default from the UCServer and the calls are not redirected.

Possible solution: In the PBX, this setting is set up for Participant unavailable, and Temporarily unavailable (480) is selected for signaling on the UCServer.

Telephone system restriction

Please note that the PBX does not support multiple SIP user agents registered to one SIP extension.

As an example: the UCServer with IP address 192.168.1.1 and port 50000 is registered on extensions 100-200 of the PBX. Now any other SIP end device is registered to extension 100. This will cause all registrations of IP address 192.168.1.1 with port 50000 to be cancelled. In this case, the UCServer would lose control of extensions 100-200. If any calls are made, they would be terminated.

Depending on the reregister time set and negotiated, the problem can keep building up because the SIP end device described above and the UCServer keep reregistering and deleting each other's registrations.

Configure feature codes

The pickup feature code configured for this purpose on the PBX must be stored in the ProCall Enterprise UCServer administration, especially for the targeted pickup (call grabbing) of incoming calls on other end devices.

Under Pickup – Pickup Feature Code, enter the speed dial code valid for the Unify OpenScape Business telephone system.
In this example, this is the character string *59<NUMBER>, but this speed dial code *59 can also be configured differently on the system to be connected.

Example screenshot properties for line group – pickup feature code

Pickup via feature code

Alternatively, you can let the telephone system handle call pickup.

To do this, you must enter the speed dial code valid for the telephone system under Pickup – Pickup Feature code.

The extension from which the call is to be retrieved is specified as a variable with <NUMBER>, for example with the string *59<NUMBER>. However, the speed dial code *59 can also be configured differently on the system to be connected.

For more information about feature codes, see also Set advanced functions for SIP lines via feature codes: Call forwarding or call pickup.

Version note

Since estos has no influence on the further development of the supported telephone systems by the manufacturer, we cannot guarantee that the instructions described above will also be fully valid for future releases.

Further information

Supported telephony functions for ProCall Enterprise with Unify OpenScape Business
